Welcome to Hebei Dunqiang Hardware Mesh Co.,LTD

358 Mesh

DunQiang is a professional manufacturer of 358 mesh. Our 358 mesh is mainly used in prison guardrails, anti-climbing guardrails and other areas with high safety performance. It can ensure that you use our 358 mesh to isolate what you want to isolate.

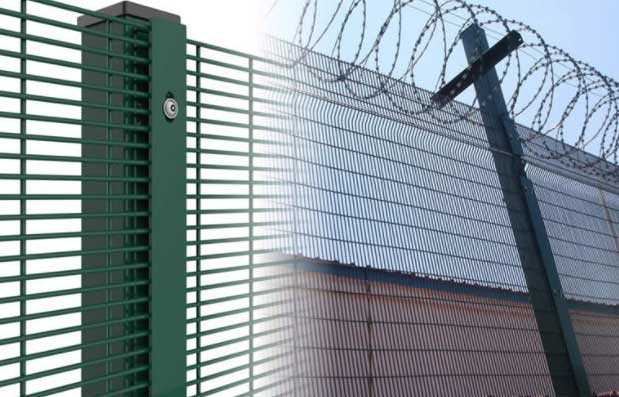

358 Mesh 1

 358 Mesh-the highest security welding mesh

What is 358 mesh?

358 mesh in the name of 358 is derived from its panel mesh size 3”×0.5”×8-approximately 76.2 mm×12.7 mm×4 mm mesh.

358 mesh fence advantages:

358 ultra-high security mesh fence is made of a small mesh strong welded mesh panel. It is very difficult to use traditional hand tools to penetrate or attack, and 358mesh has anti-climbing and anti-cutting functions.

durable

We use coating and polymer powder coating on the surface of 358 mesh to ensure a long service life.

Strong visibility

358 mesh fence uses a specially configured mesh fence to provide maximum visibility, and is especially suitable for emergency situations and electronic detection systems.

Anti-climbing

The 358 mesh fence has a smaller opening, and there is no place for toes or fingers, which makes it impossible for people who want to climb the 358 mesh fence.

Cut proof

358 mesh uses strong steel wire and welded joints. It is difficult to cut with bolt cutters and wire cutters.

 358 Mesh 2

358 mesh panel size

 Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.

Wire diameter: 4 mm horizontal wire and vertical Wire.

Weld strength: range 540–690 N/m2.

Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.

Colors: Green RAL 6005, or Black RAL 9005.

Installation: Overlapped 75 mm minimum at each post for securing with slotted clamp bars and M8 diameter bolts.



 Table-1: 358 Mesh Fence Specifications


Fence height
(m)

Panel size
(Height × Width)
(mm)

Fence Post
(Height × Size × Thick)
(mm)

Clamp Bar(mm)
(Height × Width × Thick)
(mm)
Interior or corner
Clamp No. (pcs)

 2  2007 × 2515  2700 × 60 × 60 × 2.5  2007 × 60 × 5.00  7 or 14
 2.4  2400 × 2515  3100 × 60 × 60 × 2.5  2400 × 60 × 5.00  9 or 18
 3  2997 × 2515  3800 × 80 × 80 × 2.5  2997 × 80 × 6.00  11 or 22
 3.3  3302 × 2515  4200 × 80 × 80 × 2.5  3302 × 80 × 6.00  12 or 24
 3.6  3607 × 2515  4500 × 100 × 100 × 3.0  3607 × 100 × 7.00  13 or 26
 4.2  4204 × 2515  5200 × 100 × 100 × 4.0  4204 × 100 × 8.00  15 or 30
 4.5  4496 × 2515  5500 × 100 × 100 × 5.0  4496 × 100 × 8.00  16 or 32
 5.2  5207 × 2515  6200 × 120 × 120 × 5.0  5207 × 100 × 8.00  18 or 36

358 mesh fence purpose

Generally, 358 mesh fences are used in schools, entertainment venues, hospitals, railways, ports, airports, warehouses, industrial facilities, commercial venues, prisons, military venues and other places.

Under normal circumstances, we will use 3.6m high 358 mesh, and prisons and military places widely use 5.2m fences.
